High-Purity Sodium Metal Discs (Na Disc) for Sodium-Ion Battery Research
Precision-cut Anode Material for Half-Cell & Coin Cell Applications
Key Features
✔ Ultra-High Purity
-
≥99.7% Na metal (trace O₂/H₂O <10ppm)
-
Low oxide layer (optional single-side polished for SEI studies)
- Composite aluminum foil
✔ Standard & Custom Sizes
-
Diameter: 15.6mm(or customized)
-
Thickness: 0.4mm–0.5mm (optimized for CR2032 coin cells)

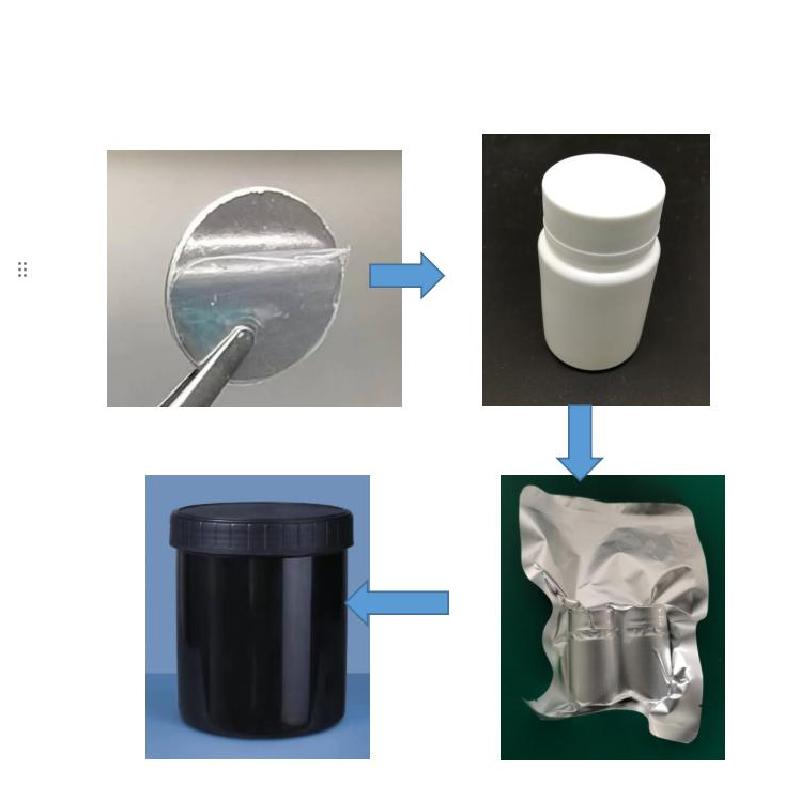

✔ Safe Packaging
-
Argon-sealed in glass vials or moisture-proof pouches
-
Compatible with glove box transfer (H₂O/O₂ <0.1ppm recommended)
✔ Research-Ready
-
Pre-cut for direct use in symmetric (Na/Na) or half-cell assemblies
-
Batch consistency for reproducible electrochemical testing
Applications
🔬 Ideal for:
-
Sodium-ion battery (SIB/NIB) anode research
-
Solid-state electrolyte interface (SEI) characterization
-
Hard carbon, Sn, Sb, and alloy anode performance testing
-
Academic and industrial R&D (coin cell & pouch cell prototyping)
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | ≥99.7% (metallic basis) |
| Density | 0.968 g/cm³ at 20°C |
| Melting Point | 97.8°C |
| Standard Diameter | 15.6mm or customize |
| Thickness Tolerance | ±0.05mm |
| Surface | Mirror-finished (oxidized layer <1μm) |
Handling & Safety
⚠ Critical Notes:
-
Storage: Must be kept under inert atmosphere (Ar/N₂) or mineral oil.
-
Handling: Use dry glove box or controlled environment (RH <1%).
Why Choose Our Sodium Discs?
✅ Consistent Performance: Minimized batch-to-batch variation for reliable data.
✅ Time-Saving: Pre-cut discs reduce lab preparation time.
✅ Technical Support: Free consultation on cell assembly protocols (ask for our SOP).
Ordering Information
-
Sample Size: 1 can (about 400pcs ) (standard diameter)
-
Bulk Discounts: Available for research groups (>100 can)
-
Lead Time: 2 weeks (custom sizes require +5 days)
📌 Customization Options:
-
Vacuum-sealed packaging for long-term storage
FAQ
Q: Can these replace sodium foil in experiments?
A: Yes! Thicker discs (≥0.8mm) reduce risk of short-circuiting vs. thin foils.
Q: Do you provide MSDS and compliance documents?
A: Yes, Material Safety Data Sheet (MSDS) and UN certification available upon request.
Q: How to minimize oxidation during use?
A: We recommend:
-
Transfer directly in glove box.
-
Use within 1 hour of unpacking.
-
Store unused discs in sealed argon vials.
